Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications

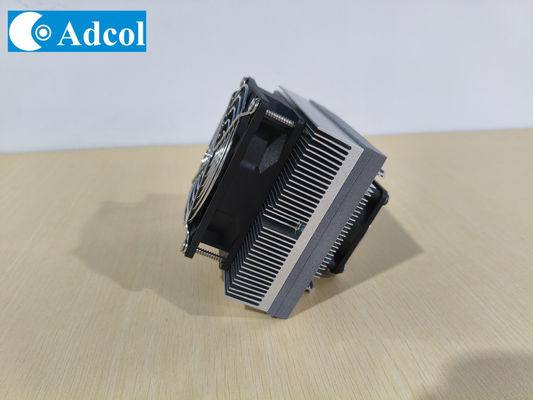

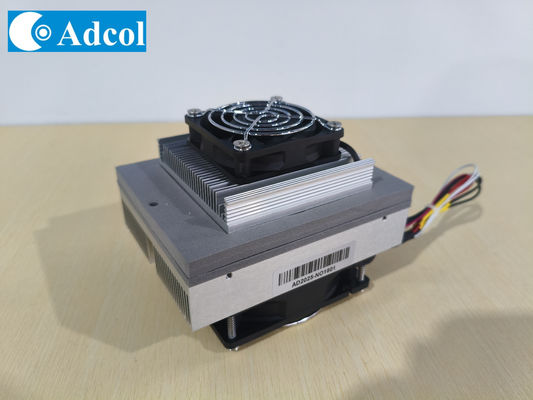

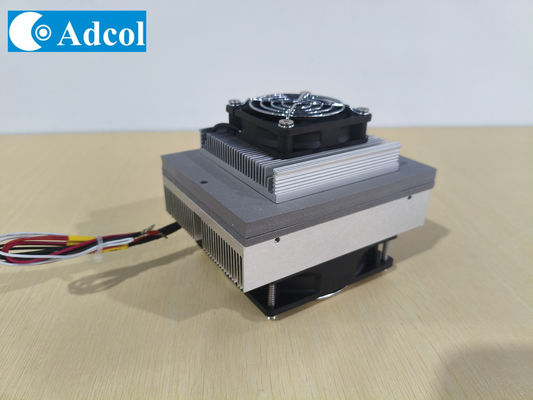

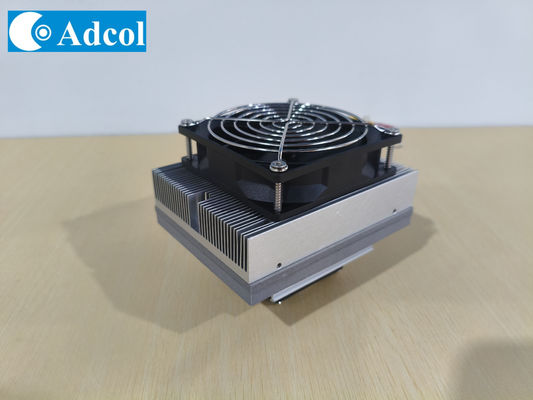

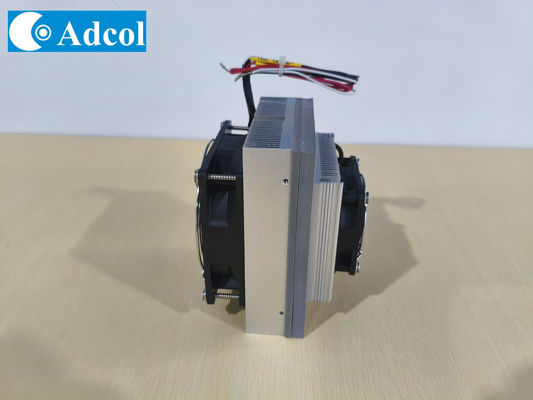

Adcol  35W Air to Air  thermoelectric Cooler for Industrial Commercial and Home Applications
Adcol  35W Air to Air  thermoelectric Cooler for Industrial Commercial and Home Applications Adcol  35W Air to Air  thermoelectric Cooler for Industrial Commercial and Home Applications Adcol  35W Air to Air  thermoelectric Cooler for Industrial Commercial and Home Applications Adcol  35W Air to Air  thermoelectric Cooler for Industrial Commercial and Home Applications Adcol  35W Air to Air  thermoelectric Cooler for Industrial Commercial and Home Applications

Ampliación de imagen :  Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: Adcol
Certificación: ISO9001 , CE
Número de modelo: ATA035-12VDC
Pago y Envío Términos:
Cantidad de orden mínima: 1EA
Precio: negotiable
Detalles de empaquetado: Embalaje de cartón sólido
Tiempo de entrega: 3 - 4 semanas
Condiciones de pago: T/t, PayPal
Capacidad de la fuente: 500 piezas por mes

Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications

descripción
P/N: ATA035-12-00 Método de enfriamiento: Aire fresco
Método de radiación: Fuerzas aéreas Temperatura ambiente/humedad: -20 a 60 ° C
Capacidad de enfriamiento: 35W Potencia de entrada: 50W
Capacidad de calefacción: 85W Actual de ventilador de lado caliente/frío: 0.24/0.20 A
TEM Nominal/Startup Corriente: 3.9/5.0a Voltaje nominal/máximo: 24/30 VDC
Dimensión general: 126 mm x 100 mm x 90 mm Peso: 0,8 kg
Vida de la vida: > = 70,000 horas Tolerancia: 10%

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.







35W Air to air thermoelectric Cooler Assembly

1. Product Introduction

The ATA035-12 Thermoelectric air conditioner is designed for electronic cabinets and environmental chambers.
It can maintain ambient temperatures while removing up to 35W. This model is available in 12VDC configurations.
This air conditioner is virtually maintenance-free, with no filters ambient to change, and it can be mounted in
any orientation, offering design flexibility with solid-state reliability.


Adcol  35W Air to Air  thermoelectric Cooler for Industrial Commercial and Home Applications 0

2.Features
  • 35W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts





3.Application
  • Outdoor enclosures
  • Outdoor/Indoor Kiosks and display
  • Battery Cabinet
  • Food/Consumer Refrigerator





4. Performance Curve





Adcol  35W Air to Air  thermoelectric Cooler for Industrial Commercial and Home Applications 1







5. Design drawing



Adcol  35W Air to Air  thermoelectric Cooler for Industrial Commercial and Home Applications 2



Adcol  35W Air to Air  thermoelectric Cooler for Industrial Commercial and Home Applications 3

Adcol  35W Air to Air  thermoelectric Cooler for Industrial Commercial and Home Applications 4
