35W Peltier Thermoelectric Dehumidifier Portable Single Channel Unit with SUS 304 Heat Exchanger and Precise Temperature Control for Gas Analyzer

Certificación
Porcelana Adcol Electronics (Guangzhou) Co., Ltd. certificaciones
Porcelana Adcol Electronics (Guangzhou) Co., Ltd. certificaciones
Comentarios de cliente
Su empresa hace perfectos productos de montaje termoeléctrico, hemos estado trabajando juntos muy felizmente en los últimos años.

—— Juergen Kreis

Buen proveedor, productos perfectos, entrega perfecta.

—— CHANA

Estoy en línea para chatear ahora

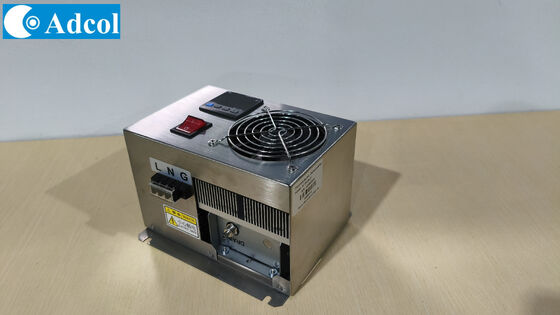

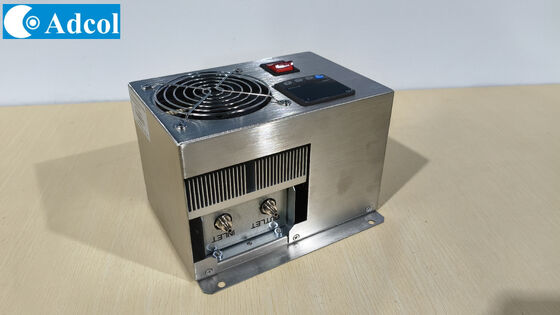

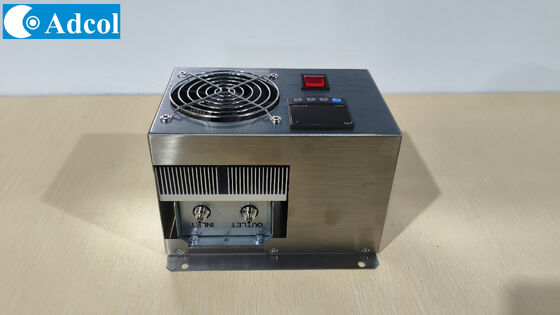

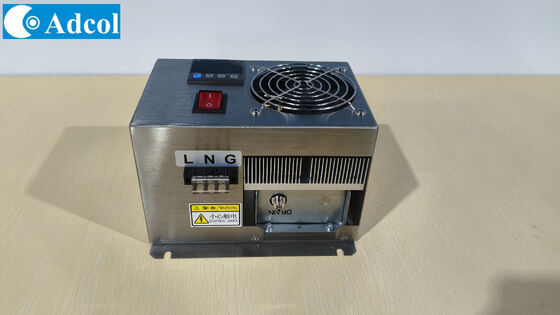

35W Peltier Thermoelectric Dehumidifier Portable Single Channel Unit with SUS 304 Heat Exchanger and Precise Temperature Control for Gas Analyzer

35W Peltier Thermoelectric Dehumidifier Portable Single Channel Unit with SUS 304 Heat Exchanger and Precise Temperature Control for Gas Analyzer
35W Peltier Thermoelectric Dehumidifier Portable Single Channel Unit with SUS 304 Heat Exchanger and Precise Temperature Control for Gas Analyzer 35W Peltier Thermoelectric Dehumidifier Portable Single Channel Unit with SUS 304 Heat Exchanger and Precise Temperature Control for Gas Analyzer 35W Peltier Thermoelectric Dehumidifier Portable Single Channel Unit with SUS 304 Heat Exchanger and Precise Temperature Control for Gas Analyzer 35W Peltier Thermoelectric Dehumidifier Portable Single Channel Unit with SUS 304 Heat Exchanger and Precise Temperature Control for Gas Analyzer 35W Peltier Thermoelectric Dehumidifier Portable Single Channel Unit with SUS 304 Heat Exchanger and Precise Temperature Control for Gas Analyzer

Ampliación de imagen :  35W Peltier Thermoelectric Dehumidifier Portable Single Channel Unit with SUS 304 Heat Exchanger and Precise Temperature Control for Gas Analyzer

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: Adcol
Certificación: ISO9001 , CE
Número de modelo: ATD035-01
Pago y Envío Términos:
Cantidad de orden mínima: 1EA
Precio: negotiable
Detalles de empaquetado: Embalaje de cartón sólido
Tiempo de entrega: 3 - 4 semanas
Condiciones de pago: T/t, PayPal
Capacidad de la fuente: 500 unidades por mes

35W Peltier Thermoelectric Dehumidifier Portable Single Channel Unit with SUS 304 Heat Exchanger and Precise Temperature Control for Gas Analyzer

descripción
Modelo: ATD035-01 Capacidad de enfriamiento: 36W
Disipación de calor: Fuerzas aéreas Voltaje de entrada: El valor de las emisiones de CO2 de los motores de combustión renovable no excederá de:
Potencia de entrada: 50W Sensor de temperatura: PT100,3-cables
Control de temperatura: Entre 1 y 3°C Precisión de control: ± 0.2 ℃
Temperatura del gas de entrada: 2-80°C Ejecutar Temp: 0-35 ℃
La humedad de la corriente: ≤85% Rh Protección contra las temperaturas: 90 ℃
Peso: 2,5 kilos

35W Single Channel thermoelectric dehumidifier



1.Product Introduction

Adcol Single Channel thermoelectric dehumidifier uses high quality thermoelectric modules and

SUS 304 heat exchanger. It can be widely used for pre-processing stage of the gas analyzers

35W Peltier Thermoelectric Dehumidifier Portable Single Channel Unit with SUS 304 Heat Exchanger and Precise Temperature Control for Gas Analyzer 0
2.Feature
1.Precise Temperature Control
2.Refrigerant free - environmentally friendly
3.Reduced noise and vibration witno moving parts
4.Portable, easy to carry
5.High Reliability

3.Installation:
The dehumidifier must be installed on the wall or the plate which is perpendicular to ground.
Used 4 pcs M6 screws with tooth washer

35W Peltier Thermoelectric Dehumidifier Portable Single Channel Unit with SUS 304 Heat Exchanger and Precise Temperature Control for Gas Analyzer 1

4.Design drawing

35W Peltier Thermoelectric Dehumidifier Portable Single Channel Unit with SUS 304 Heat Exchanger and Precise Temperature Control for Gas Analyzer 2


35W Peltier Thermoelectric Dehumidifier Portable Single Channel Unit with SUS 304 Heat Exchanger and Precise Temperature Control for Gas Analyzer 3
